Follows the contours
Conformable film gives skilled hands the flexibility to work around demanding shapes. We plan the joins and edges for your particular car.
Obsidian Custom Designs · Uxbridge
Obsidian Shield.
Protection with presence.
Clear or coloured paint protection film. Deep reflections, a beautifully fitted finish and flexible TPU that follows your car’s character.
Over 20 yearsof experience in detailing & PPF
High conformabilityHeat-assisted self-healingClear & coloured finishes
Bentley · Craft in Motion36 seconds
Made to follow the form
High conformability.A seamless-looking finish.
Shield’s flexible TPU helps our fitters work with curves, sculpted panels and complex body lines. Combined with precise fitting and wrapped edges where practical, it creates a clean, continuous-looking finish.
Gloss you can see

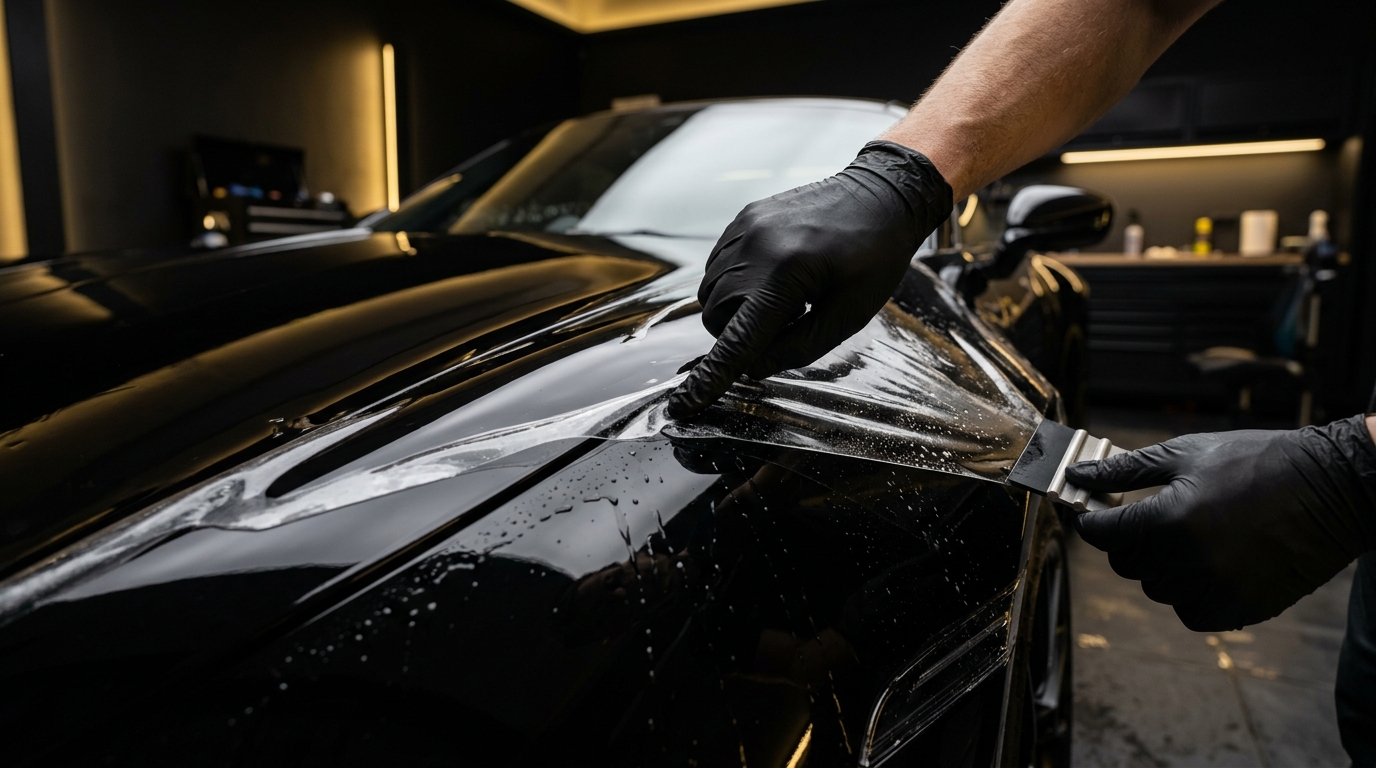

A clear finish that lets the paint show through, or a coloured film that changes the whole character of the car. Our installation films show the care in fitting and the finished reflections.
Protection with recovery
A protective TPU layer against everyday wear, with heat-assisted recovery of light topcoat marks. Deep scratches and impacts can still damage the film.
Our fitters have worked for leading PPF installation companies. Film selection, preparation and fitting all contribute to the result.
The decision behind the finish
Old film off.Shield on. Full car.
The customer wanted the existing film removed and the whole Porsche protected in Obsidian Shield. Hear Aj tell the story, then see the finish for yourself.
Considering the same change? We assess your existing film and paint first, then agree the removal, preparation and new coverage with you.

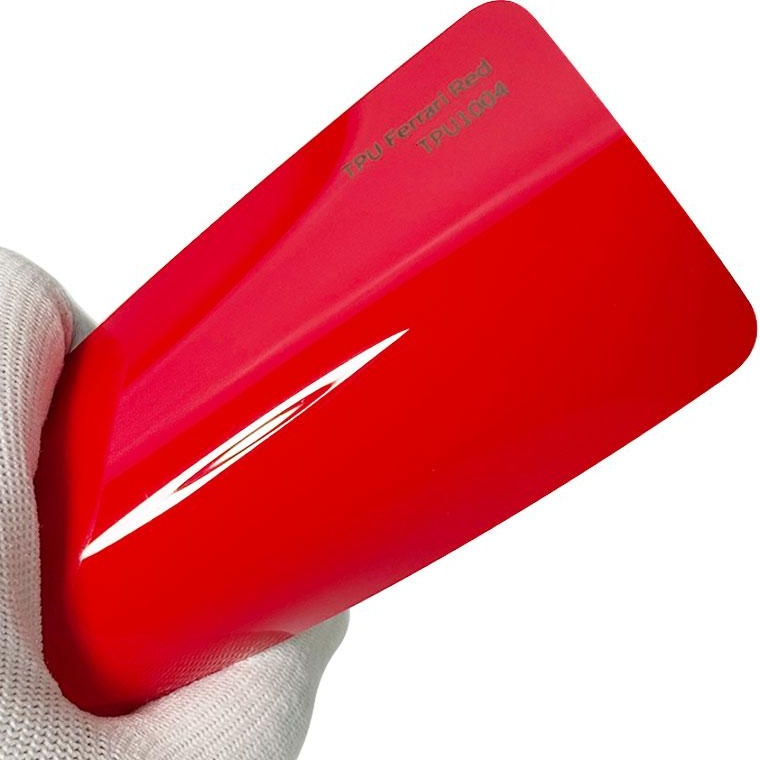

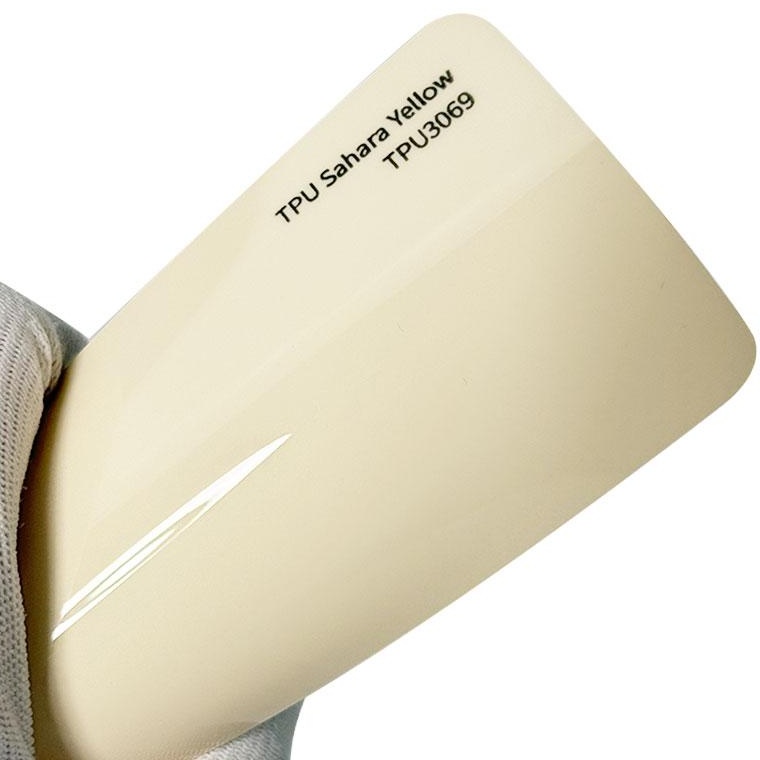

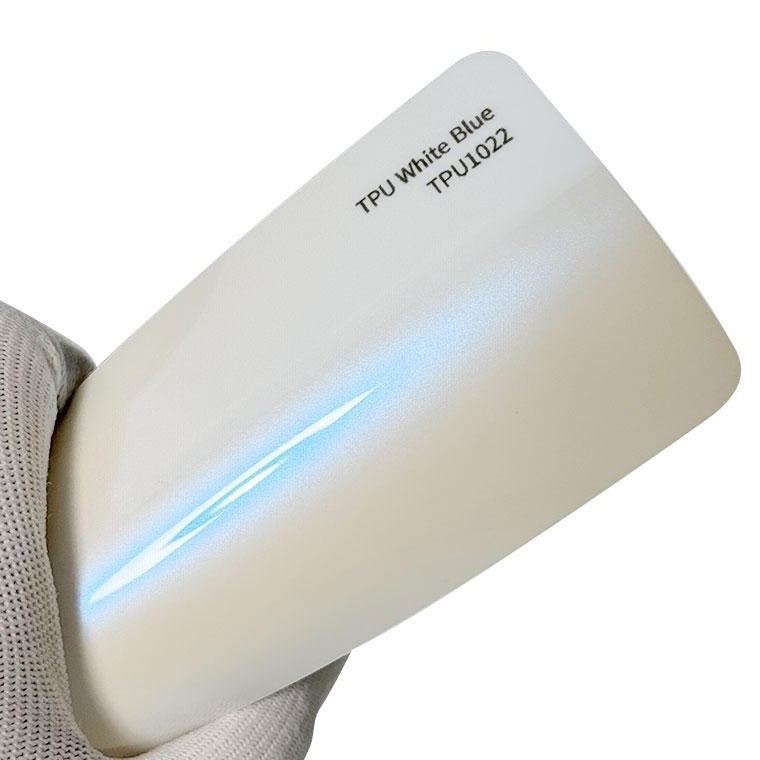

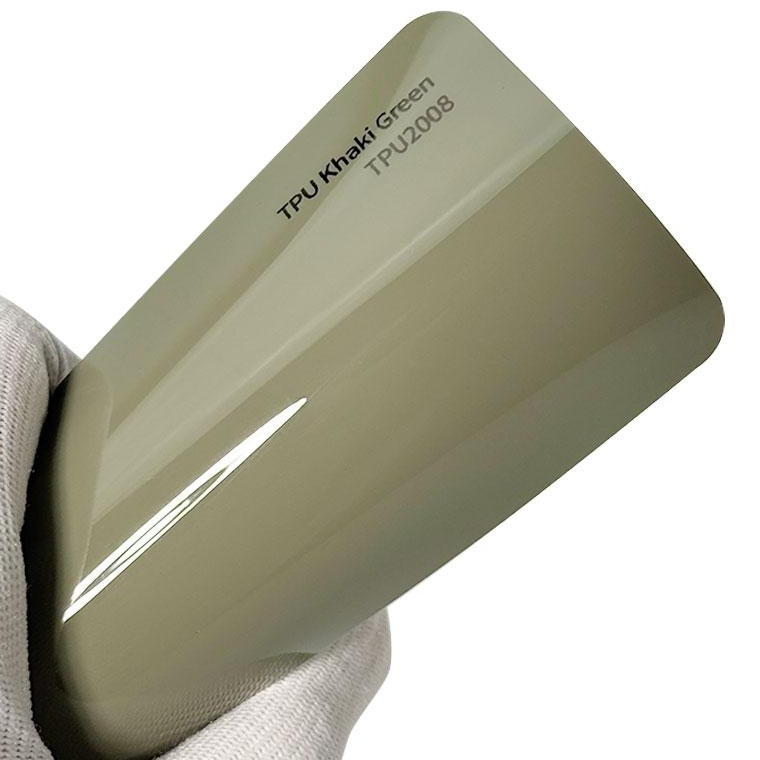

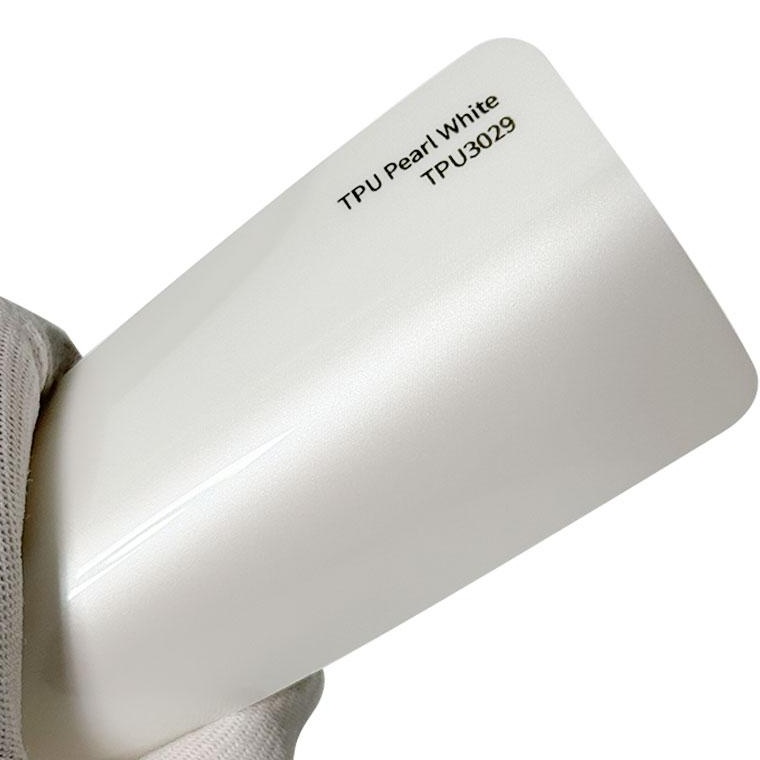

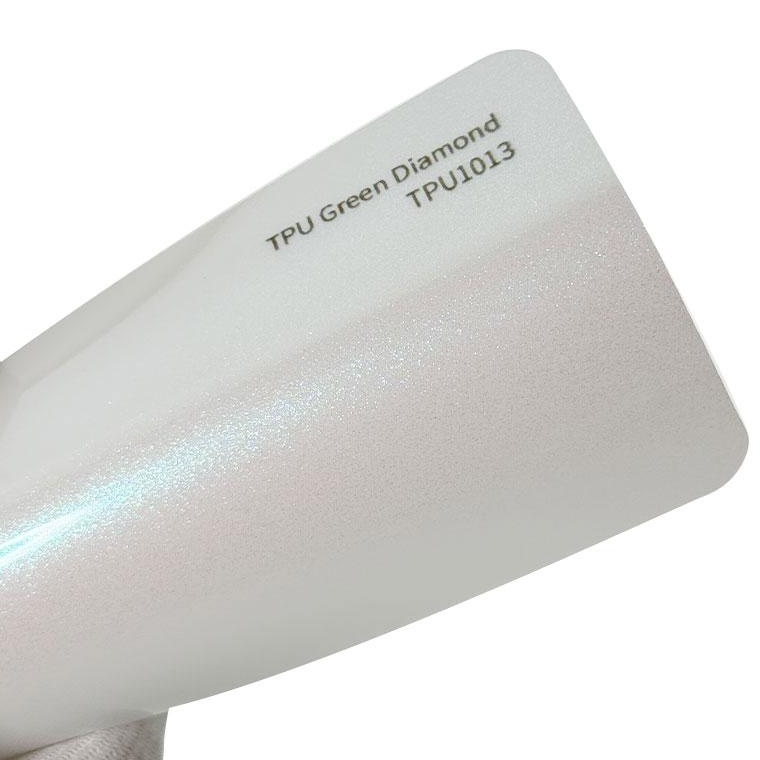

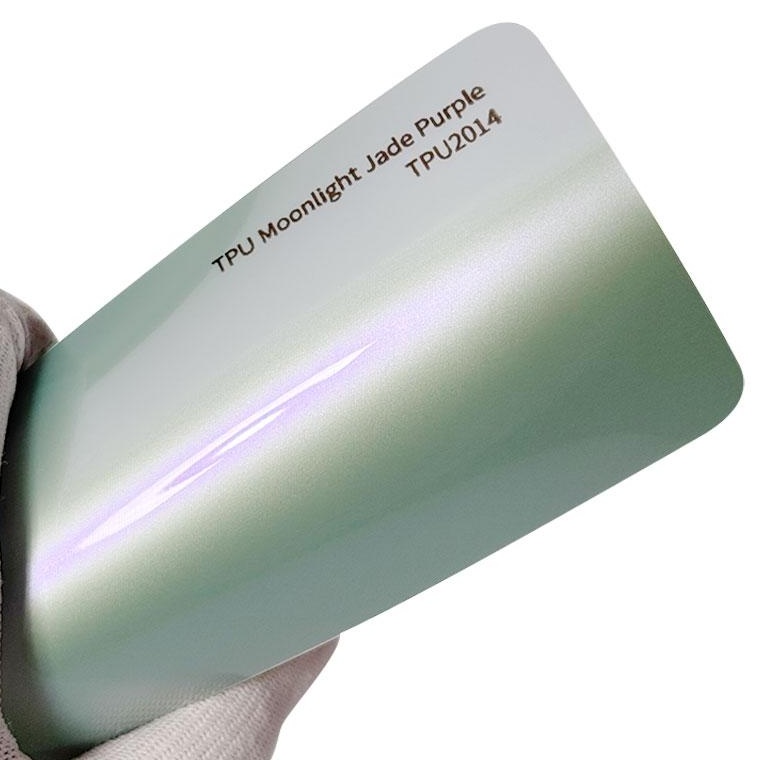

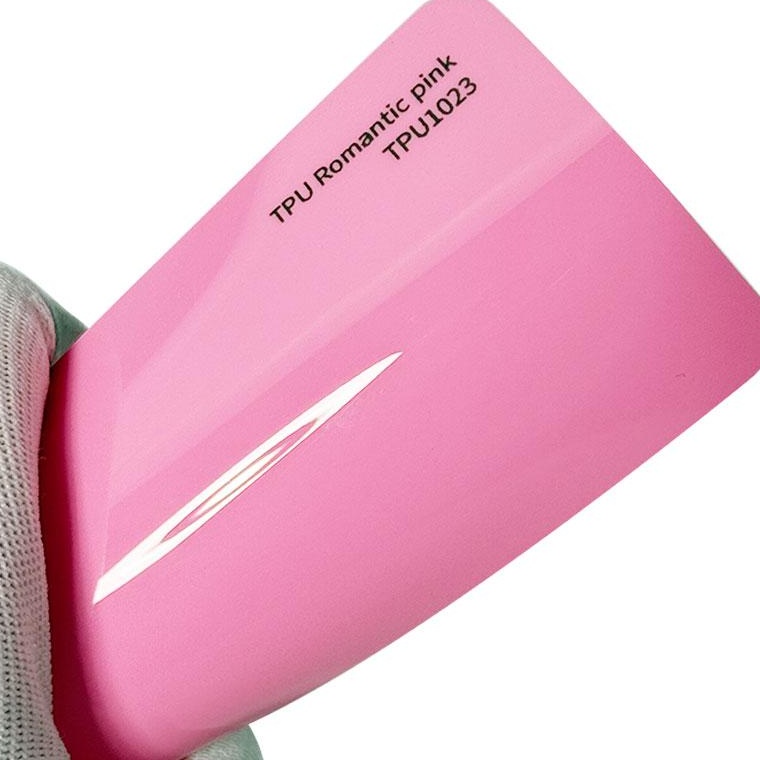

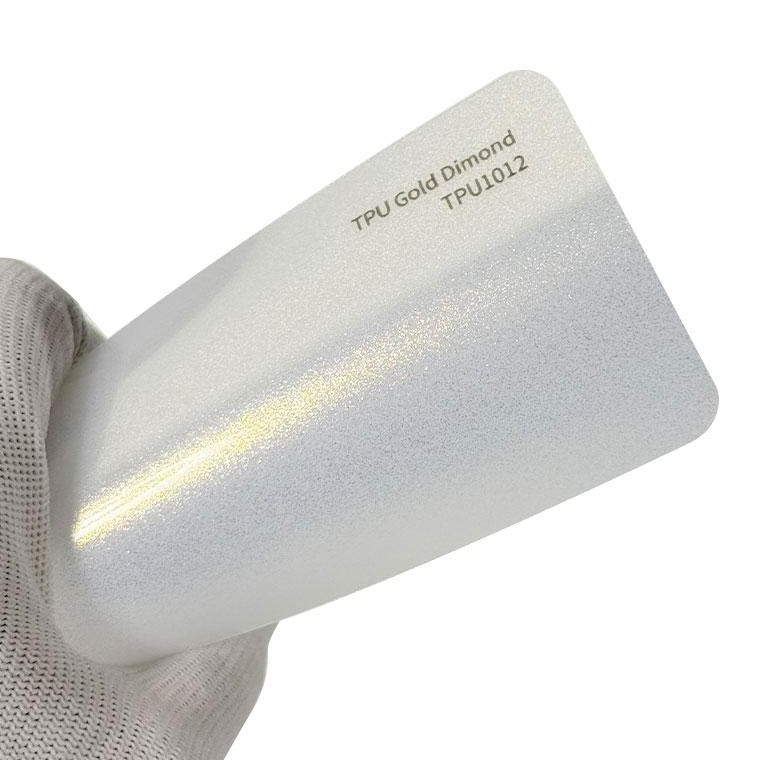

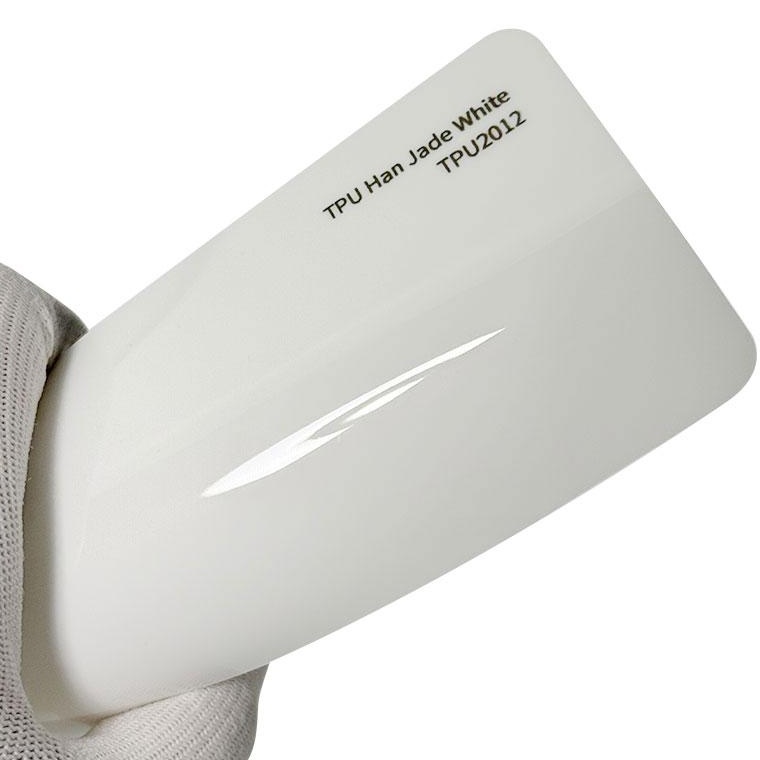

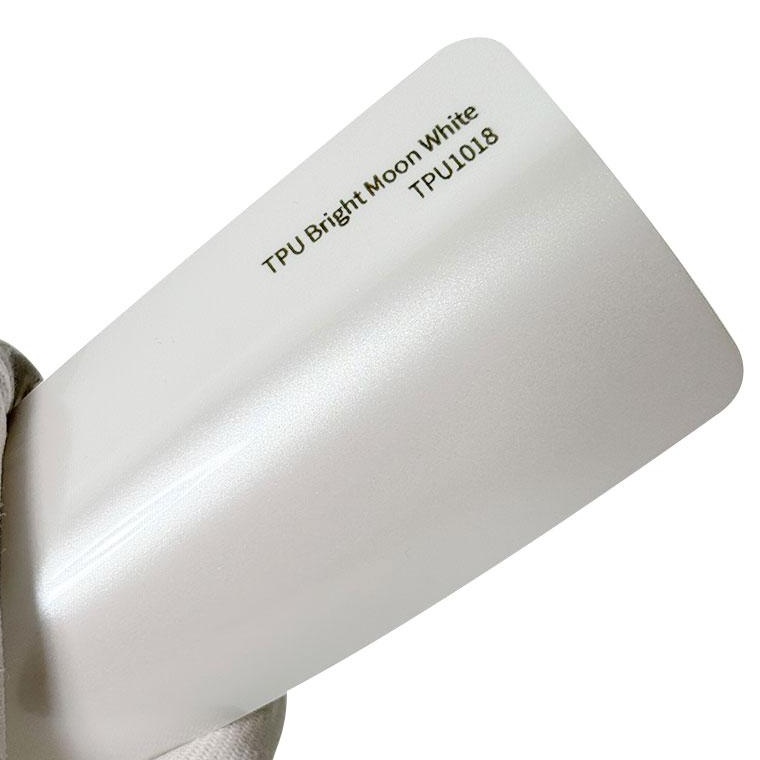

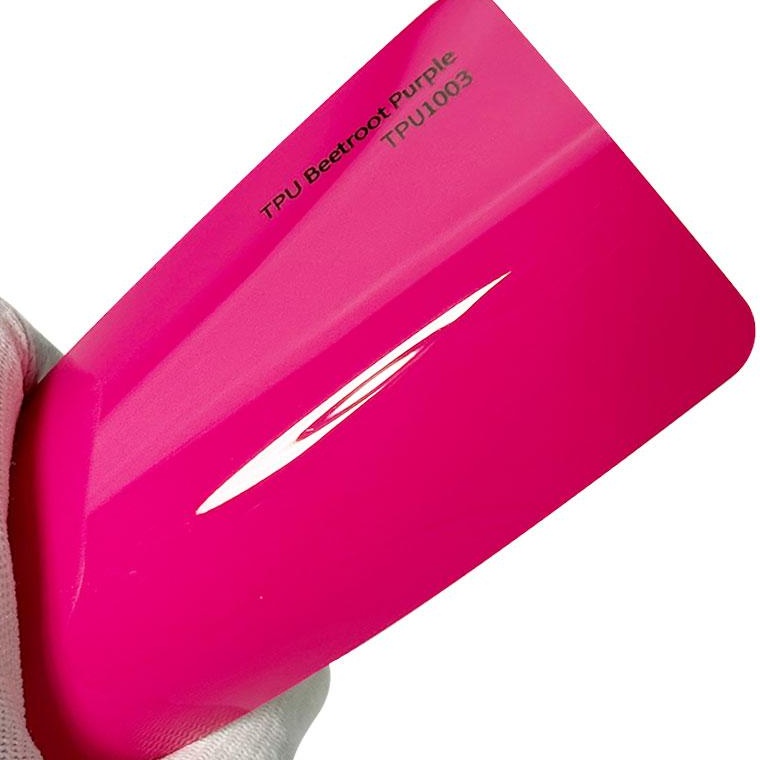

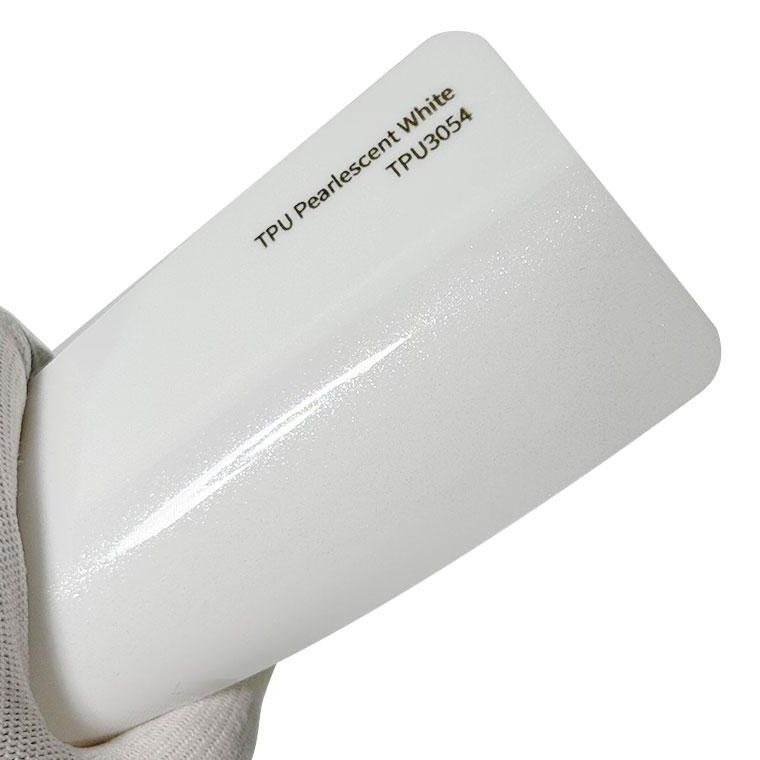

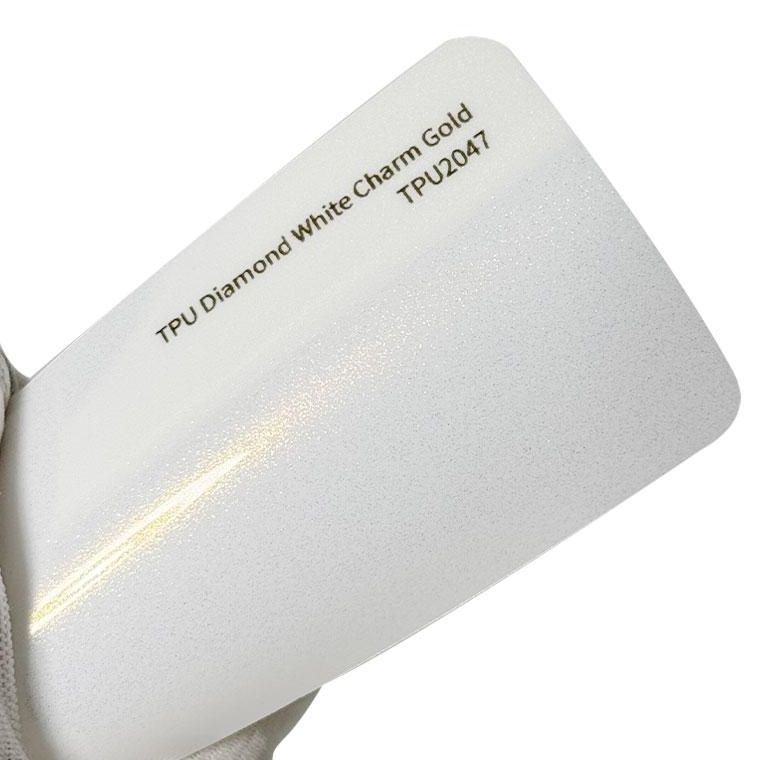

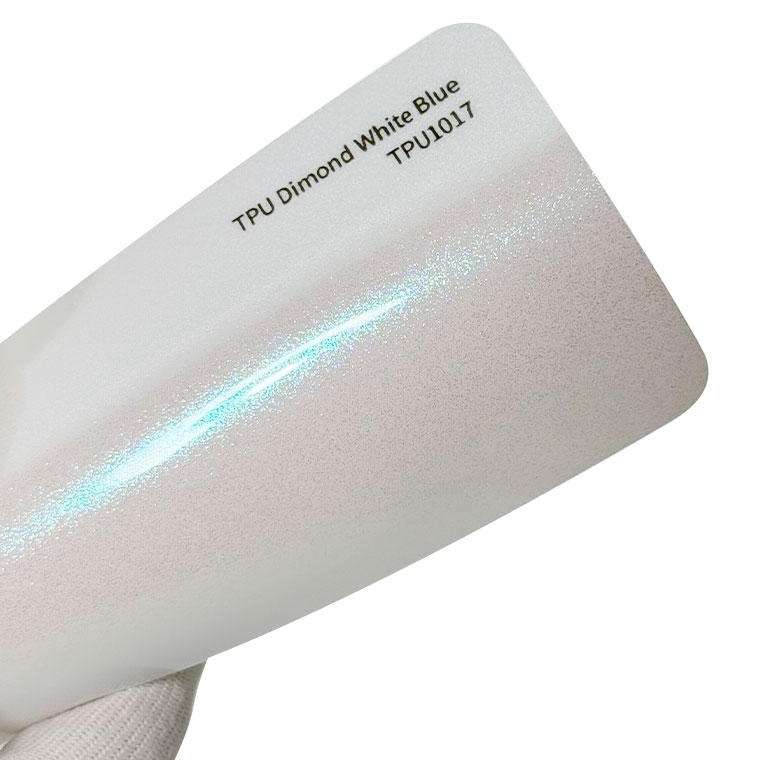

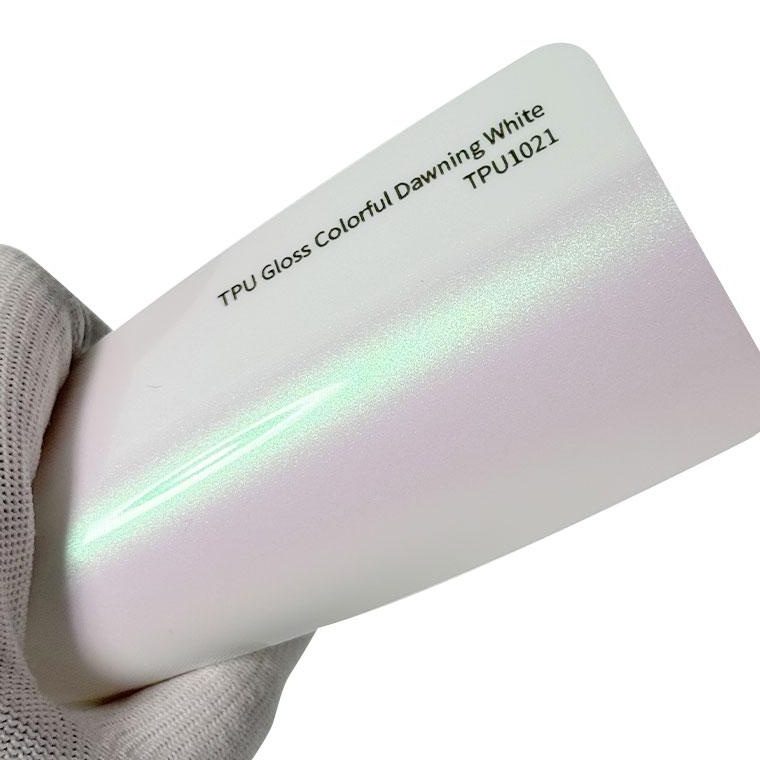

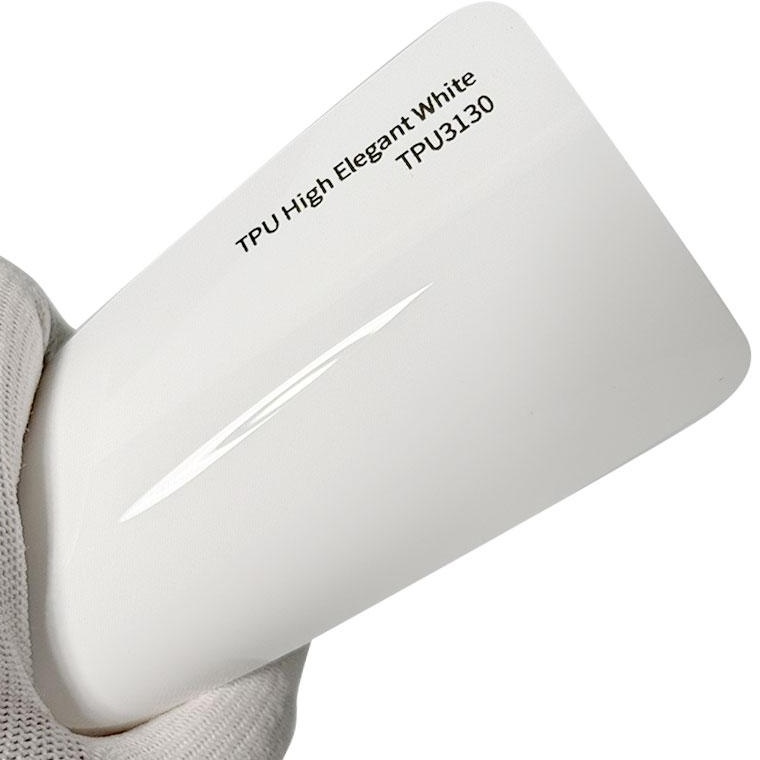

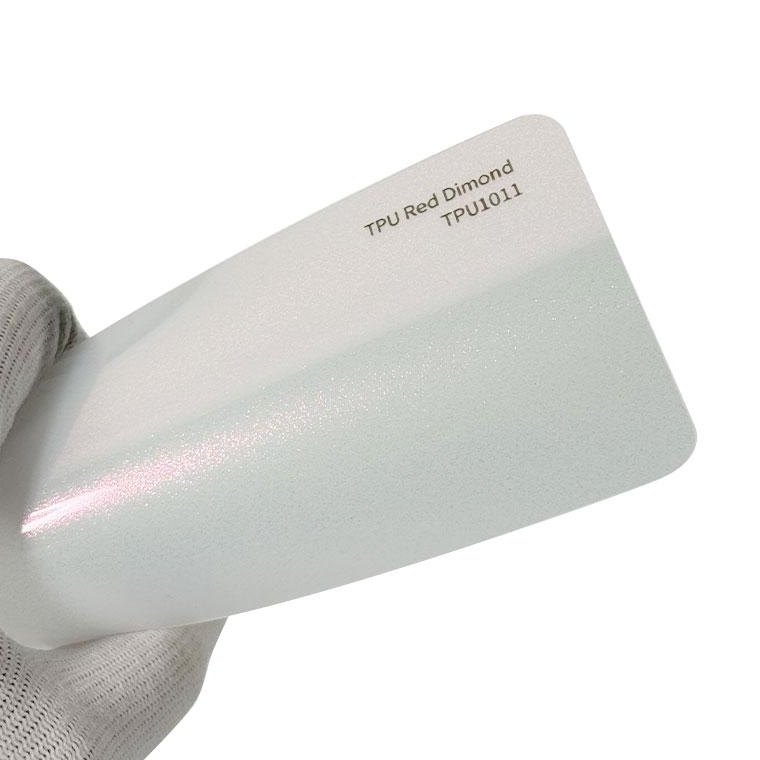

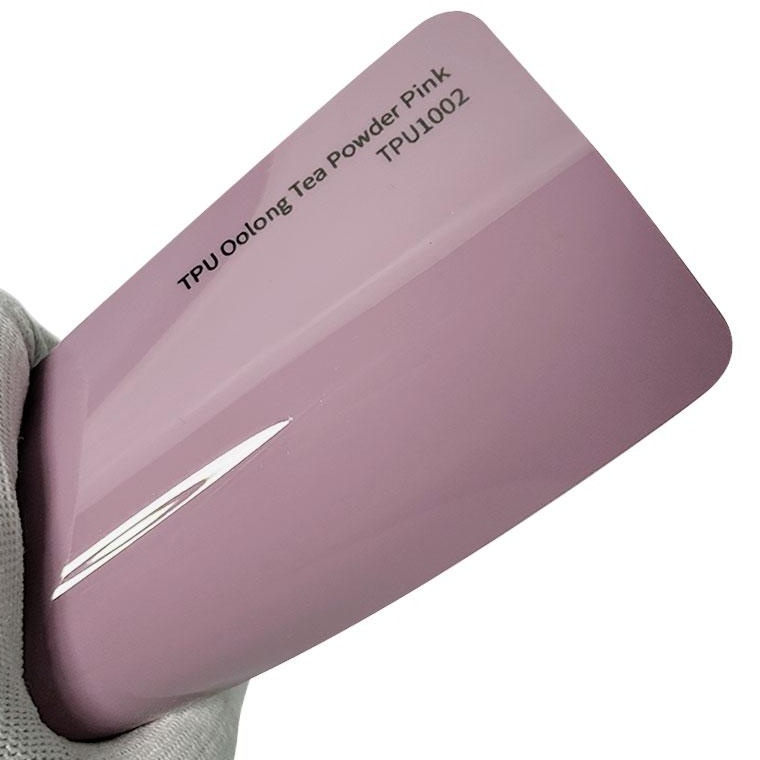

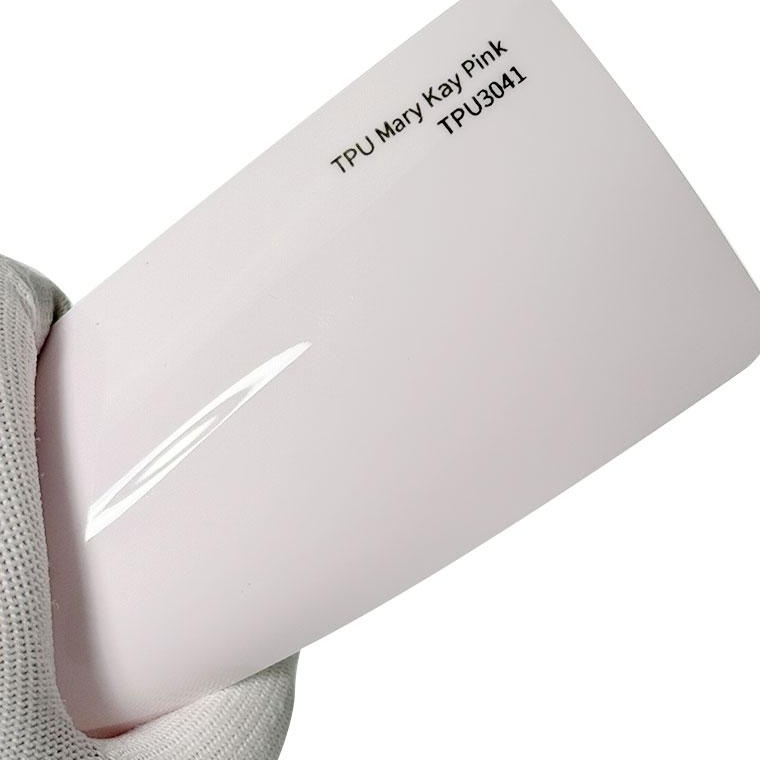

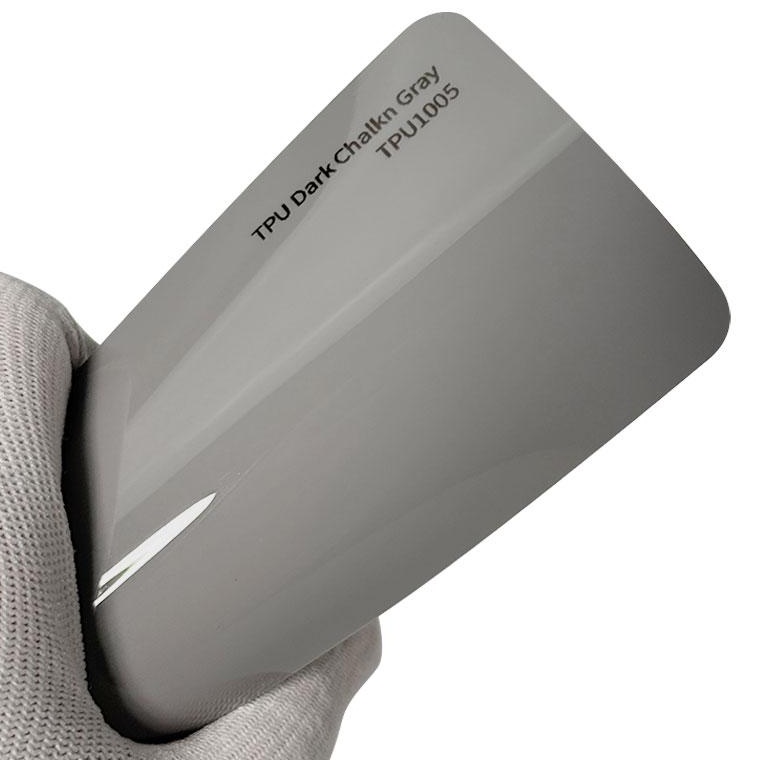

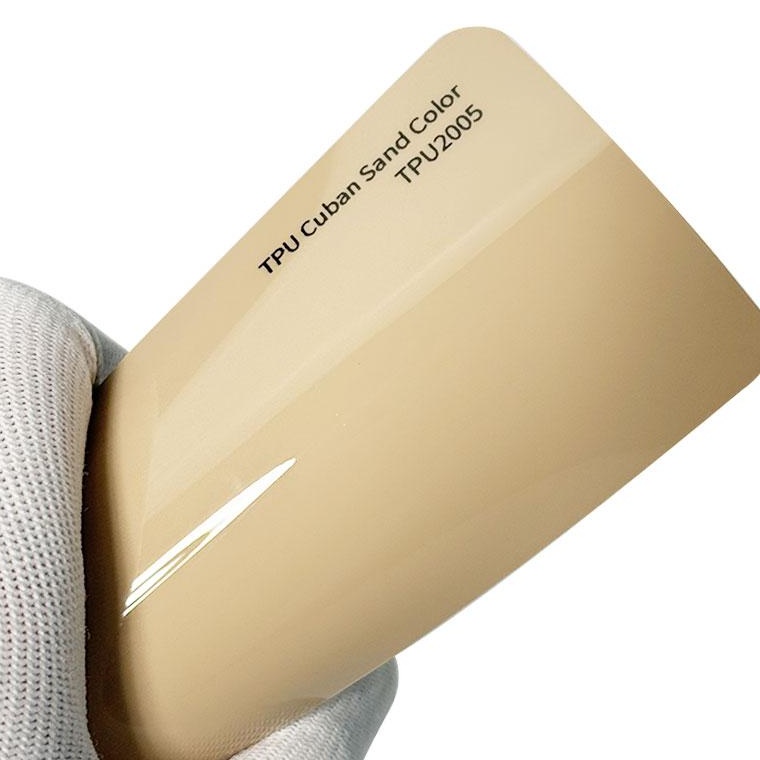

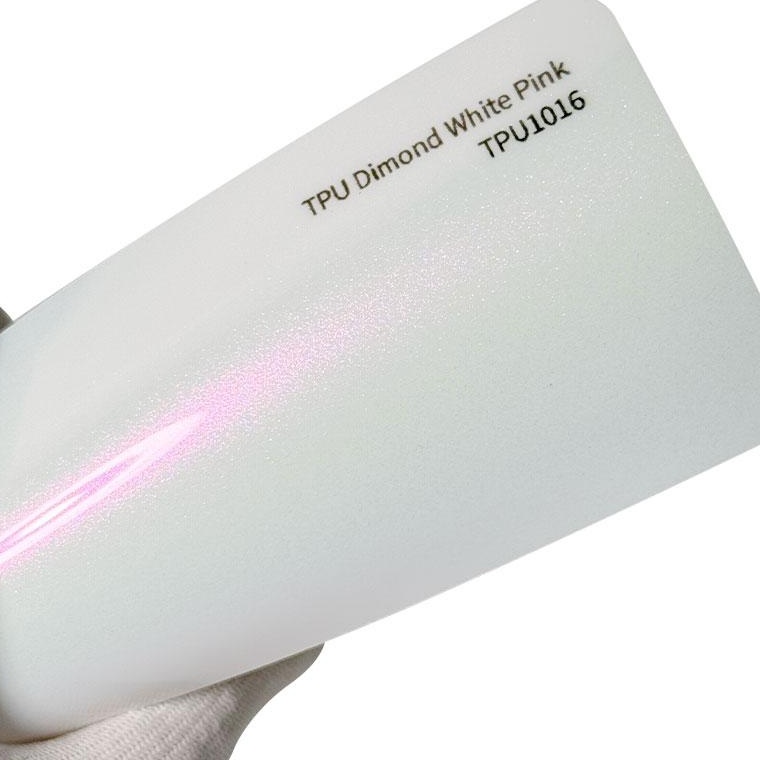

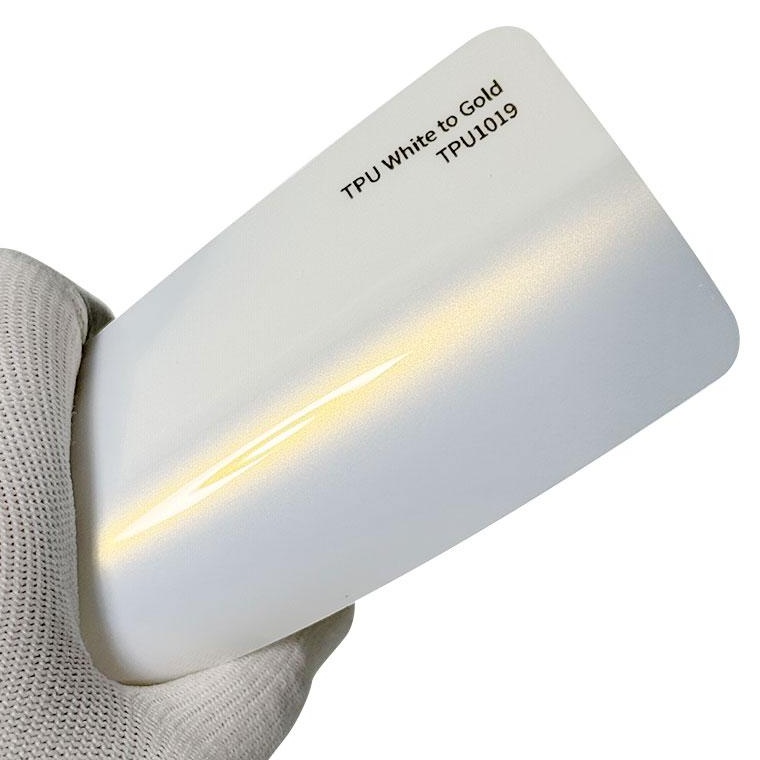

Obsidian Shield colours
Keep the colour.Or change everything.
Explore gloss, satin, matte, metallic and special-effect finishes. Search the full catalogue by colour or code, then view a physical sample with us before deciding.
The colour-shifting Taycan30 seconds
Before your installation
Your Shieldquestions, answered.
What makes Obsidian Shield conformable?
Its flexible TPU construction helps an experienced installer follow curves, recesses and complex body lines. Careful positioning and edge wrapping, where practical, help achieve a seamless-looking finish. Film joins and edge treatment depend on the vehicle and coverage agreed.
Can you remove my existing PPF and replace it with Shield?
Yes, we can assess the existing film and paint before quoting for removal, preparation and a new Shield installation. Tell us the age of the film and whether the panels have been repainted, and send photographs so we can plan the work.
Does the clear-film specification apply to every Shield colour?
No. The table below is the clear PPF reference specification. Coloured films can have different construction, thickness, finish and warranty. We confirm the exact product and its terms before you book.
Will self-healing repair every scratch?
Heat-assisted self-healing is intended for light surface marks in the topcoat. It will not repair deep cuts, punctures or damage to the paint underneath. Follow the care guidance supplied with your selected film.
The film in detail
Technicalspecification.
Obsidian Shield clear PPF reference specification. These figures apply to the clear film, not every coloured finish or our windscreen protection film. We confirm the current product specification and warranty with your quote.
| Property | Specification |
|---|---|
| Film face material | Thermoplastic polyurethane (TPU) |
| Total finished film thickness¹ | 190 ± 10 µm |
| Top PET protective film | 45 ± 2 µm |
| Bottom PET release film | 75 ± 3 µm |
| Standard roll width | 1.52 m ± 0.01 m |
| Standard roll length | 15 m |
| TPU haze | ≤ 2% |
| Visible light transmission | ≥ 92% |
| UV rejection | > 90% |
| Elongation at break² | ≥ 260% |
| Coating fracture elongation | ≥ 90% |
| Acrylic adhesive peel strength | > 1,400 gf |
| Tensile strength | > 15 MPa |
| 100% modulus | > 6 MPa |
| Tear strength | ≥ 42 kN/m |
| QUV ageing resistance | ΔE*ab < 2 — 1,000-hour test |
| Thermal stability | No cracks, turbidity, bubbles or colour change in the reported test |
| Scratch resistance | Surface intact after heat-repair cycle |
| Self-repair rate³ | 100% in the reported heat-repair test |
| Gloss rating | ≤ 110 GU |
| Storage conditions | 15–25°C · 40–60% relative humidity |
| Clear-film anti-yellowing warranty⁴ | 10 years, subject to product terms |
¹ Finished thickness includes TPU, coating and adhesive, excluding the removable PET films. ² Elongation at break is a material test result, not a recommended installation stretch.
³ Reported laboratory heat-repair performance applies to the test conditions; it is not a promise that all scratches will disappear. ⁴ The clear-film anti-yellowing warranty is subject to the selected product’s installation, storage, maintenance and warranty terms. Coloured-film terms are confirmed separately.
Made for your car
Let’s talk details.
Send your make, model and year. We’ll confirm the options, price and availability.
